CTS Potentiometer A500K Push-Pull

CTS Potentiometer A500K Push-Pull

[CTS Potentiometer A500K Push-Pull]

High quality potentiometer CTS A500K push pull for electric guitar and bass guitar / 1 pcs

The CTS A500K Push-Pull potentiometer is designed for electric guitars and basses requiring versatile wiring options. With its audio (A-type) taper and built-in push-pull switch, it enables advanced functions like coil-splitting, phase switching, or series/parallel wiring. The solid brass construction ensures smooth rotation, reliable performance, and long-lasting durability.

Specification:

• Type: Push-Pull (potentiometer + switch)

• Resistance: 500K Ω (A-type, Audio Taper)

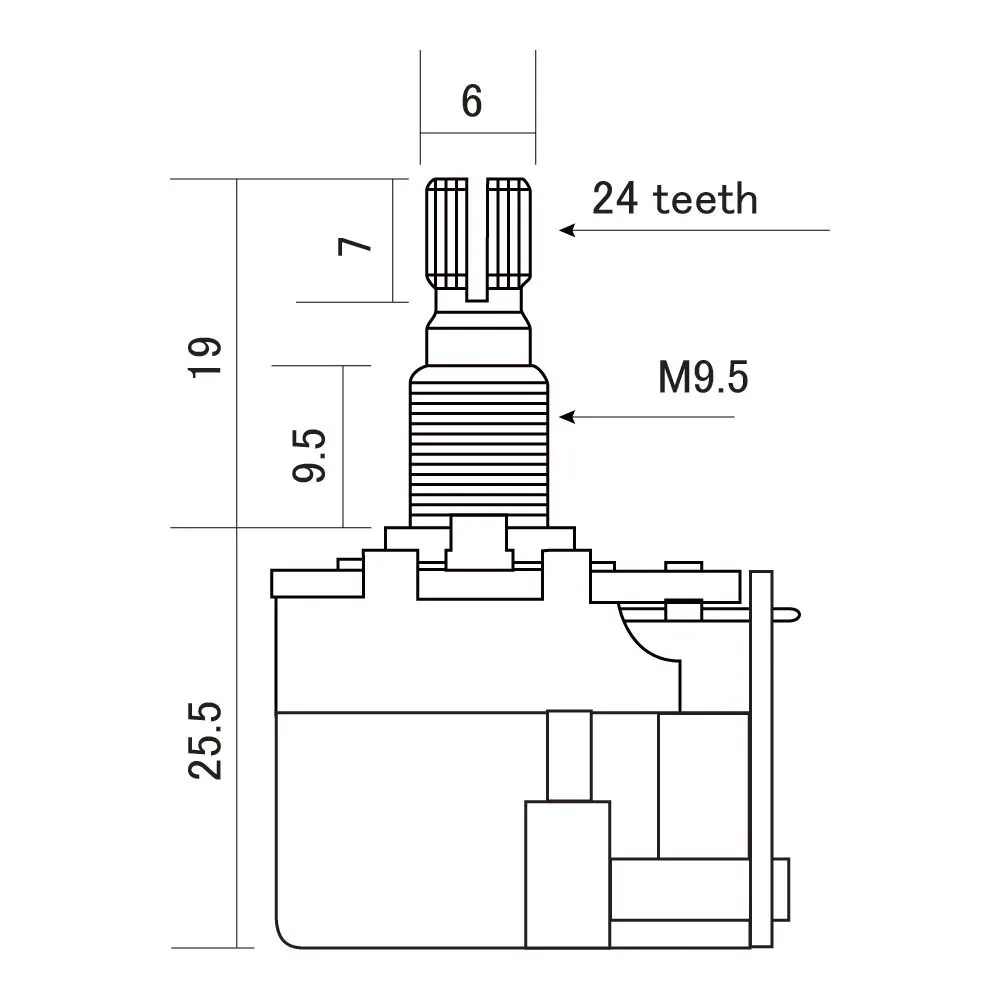

• Body Diameter: 24 mm

• Thread Diameter: 9.5 mm

• Thread Length: 12 mm

• Split Shaft Diameter: 6 mm – fits knobs with coarse knurling (24 splines, USA standard)

• Material: Brass shaft and bushing for smooth rotation and long life

• Includes: Nut, knurled washer, and flat washer

• Origin: Made in the USA (CTS – Chicago Telephone Supply)
