EMG 808 Guitar Pickup Humbucker Active Soapbar Black

[EMG 808 Humbucker Guitar Pickup Active Black]

Product Code: EMG 808 BK

For extended-range pioneers demanding extreme tonal authority across an expanded register, the EMG 808 Active Black stands as the definitive benchmark for multi-string execution. This special active humbucker pickup, engineered with a rugged soapbar housing, was developed specifically to solve the unique challenges of sub-frequency tracking. Meticulously optimized for 8-string electric guitars and heavily drawing from the architecture of the legendary 707, it eliminates the muddy lack of definition that often plagues the low-F# string. It ensures that your lowest notes retain a muscular punch and structural tight focus without degenerating into an unarticulated low-end wash.

This high-quality pickup combines high-grade Alnico V magnets with wide-wound internal coils. This structural design grants the instrument a wide, responsive dynamic range and absolute note separation, allowing complex chord voicings to ring out cleanly even when filtered through dense high-gain processing. The mid-range remains robustly vocal while the top-end provides a crisp, defined snap. Perfect for technical progressive metal, modern djent, and heavy rhythmic tracking, it guarantees a pristine signal path isolated from ambient noise. Installation is entirely streamlined by a 100% solderless wiring system (Solderless Quick-Connect), allowing you to connect all accompanying pots, buses, and jacks via simple snap-on wire routing.

♫ Technical Specifications (Click to expand)

Pickup Type: Active high-output extended-range humbucker
Guitar Configuration: Engineered explicitly for 8-string electric guitars
Magnetic Core: Alnico V (delivers warm, punchy response with exceptional organic sustain)
Coil Configuration: Wide-wound internal architecture (tailored to retain tight definition on the low F# string)
Housing Metric: Rectangular Soapbar layout (EMG 40 housing dimensions – please note this is wider than 7-string variations)
Positioning: Universal placement capability (flawless tracking as a crushing bridge rhythm driver or a warm, fluid neck lead)
Finish: Matte Black (BK), closed shielded protective case
Primary Genres: Progressive metalcore, modern djent, tech-death, drop-tuned deathcore, heavy math-rock
Wiring Platform: 100% solderless quick-connect interface mapping

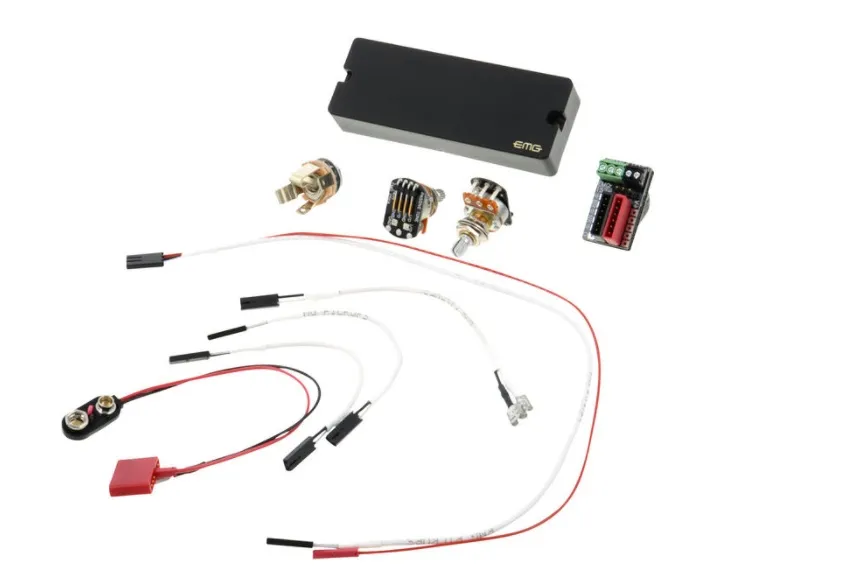

➕ Package Includes (Click to expand)

1x EMG 808 Active Humbucker Pickup (Matte Black Soapbar Casing)
1x 25k Solderless Volume Potentiometer
1x 25k Solderless Tone Potentiometer
1x Switchcraft Stereo Output Jack
1x Solderless Interconnect Terminal Buss Block
1x 9V Battery Clip Harness and power interface wire
1x Quick-Connect internal pickup routing cable
2x Interconnect control pots cables
1x Output jack interface cable
2x Mounting wood screws + 2x height adjustment springs

✨ Frequently Asked Questions - FAQ (Click to expand)

Q: Will the EMG 808 fit into standard routes intended for 7-string pickups?
A: No, the EMG 808 uses the wider EMG 40 housing platform to properly capture the full string spacing of an 8-string electric guitar. If your instrument was routed for traditional humbuckers or smaller soapbars, body routing modifications will be required.

Q: Why does the setup manual insist on leaving the bridge ground wire completely unattached?
A: Active EMG networks rely on comprehensive internal shielding within the sealed cap, completely rejecting external interference without grounding the strings. Leaving the bridge ground wire disconnected acts as an indispensable safety barrier, protecting the player from lethal electrical loops if they touch strings connected to a faulty stage amplifier.

Q: Can I wire this standard EMG 808 alongside an X-Series active humbucker?
A: Yes, the unified solderless Quick-Connect bus system allows full cross-compatibility between standard active EMG pickups and X-Series models. They will mix cleanly, though you should ensure the correct potentiometers are distributed to maintain balanced tonal characteristics.

Q: What is the average expected life of a 9V battery with this 8-string setup?
A: Active EMG configurations draw very minimal current. A premium 9V alkaline battery will supply roughly 3000 hours of actual playing runtime. The battery active circuit loop is engaged only when an instrument cable is inserted into the output jack—always unplug your cable when the guitar is stored to prevent power drain.
